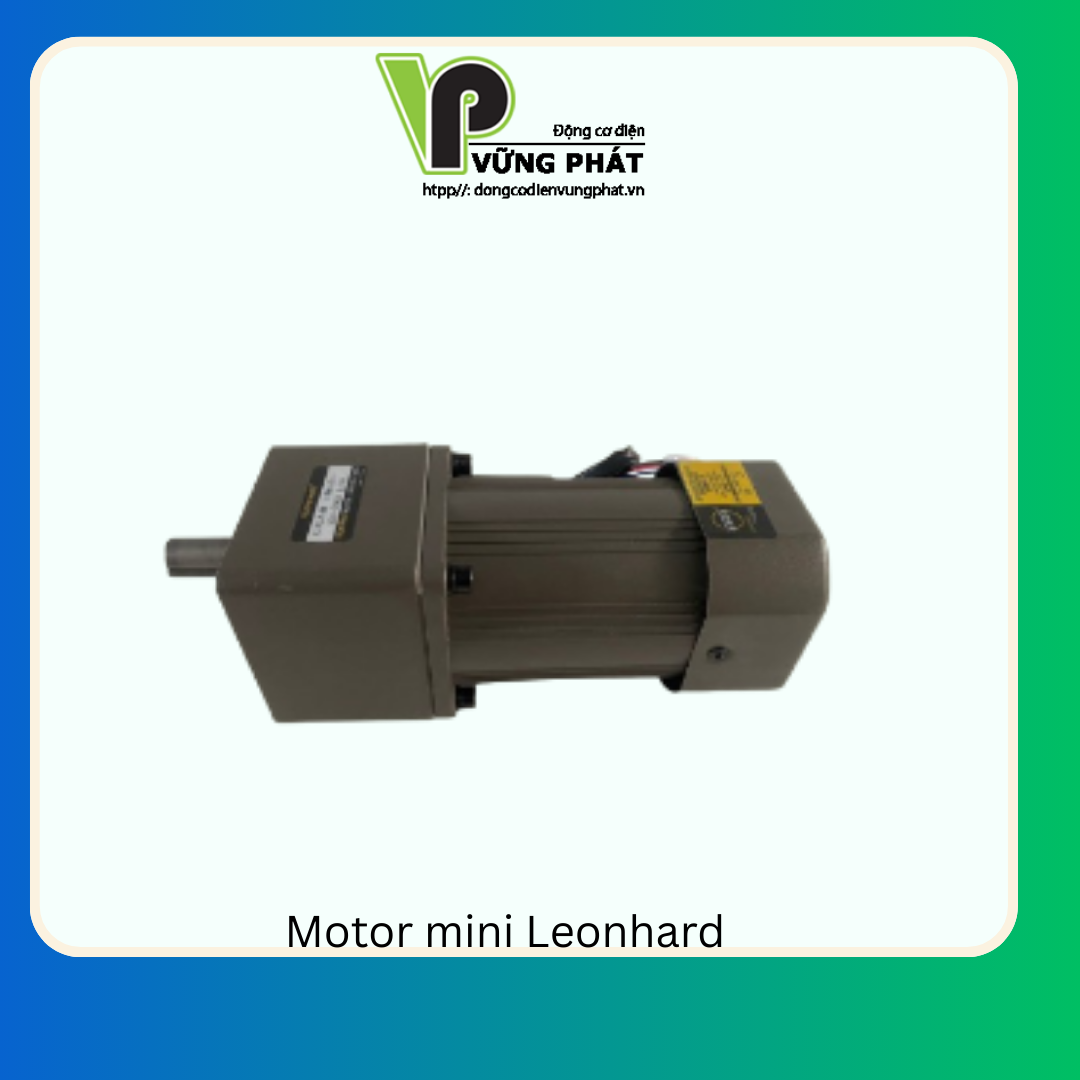

LEONHARD MOTOR GIẢM TỐC MINI
– Hãng sản xuất: LEOHARD
– Xuất xứ: ĐÀI LOAN
– Bảo hành sản phẩm 12 tháng
THÔNG SỐ KỸ THUẬT:
-Công suất : 6 W – 250 W
-Điện áp : 1phase 220v – 3phase 220V/380V
ỨNG DỤNG:
Motor giảm tốc mini Leonhard được sử dụng rộng rãi: băng tải, khuấy trộn, tự động hóa …
CÁC MODEL TƯƠNG ỨNG:
| Motor model | Output
( W ) |
Voltage
V |
Hz | Current
A |
Starting
torque mN.m |
Rated
torque |
Rated
speed |
Capacitance
capacity / withstand voltageμF/ AC |
||
| 2IK6A-A | 2IK6GN-A | 6 | Simplex 110 | 50/60 | 0.24 | 50 | 45 | 1250/1550 | 2/250V | |
| 2IK6A-C | 2IK6GN-C | Simplex 220 | 50/60 | 0.12 | 50 | 45 | 1250/1550 | 0.6/450V | ||
| 3IK15A-A | 3IK15GN-A | 15 | Simplex 110 | 50/60 | 0.36 | 95 | 118 | 1250/1550 | 5/250V | |
| 3IK15A-C | 3IK15GN-C | Simplex 220 | 50/60 | 0.16 | 95 | 118 | 1250/1550 | 1.2/450V | ||
| 5IK60A-A | 5IK60GN-A | 60 | Simplex 110 | 50/60 | 0.9 | 397 | 450 | 1300/1600 | 14/250V | |
| 5IK60A-C | 5IK60GN-C | Simplex 220 | 50/60 | 0.52 | 397 | 450 | 1300/1600 | 3.5/450V | ||
| 5IK60A-S3 | 5IK60GU-S3 | Three-phase 380 | 50/60 | 0.18 | 970 | 450 | 1300/1600 | |||
| 5IK60A-S | 5IK60GU-S | Three-phase 380 | 50/60 | 0.31 | 970 | 450 | 1300/1600 | |||
|
5IK90A-A |
5IK90GN-A | 90 | Simplex 110 | 50/60 | 1.2 | 580 | 670 | 1300/1600 | 20/250V | |
| 5IK90A-C | 5IK90GN-C | Simplex 220 | 50/60 | 0.5 | 580 | 670 | 1300/1600 | 5.0/450V |
|
|
| 5IK90A-S3 | 5IK90GU-S3 | Three-phase 380 | 50/60 | 0.38 | 2400 | 670 | 1300/1600 | |||
| 5IK90A-S | 5IK90GU-S | Three-phase 220 | 50/60 | 0.66 | 2400 | 670 | 1300/1600 | |||
| 5IK120A-A | 5IK120GN-A | 120 | Simplex 110 | 50/60 | 1.68 | 650 | 800 | 1300/1600 | 24/250V | |
| 5IK120A-C | 5IK120GN-C | Simplex 220 | 50/60 | 0.81 | 650 | 800 | 1300/1600 | 6.0/450V | ||
| 5IK120A-S3 | 5IK120GU-S3 | Three-phase 380 | 50/60 | 0.43 | 2900 | 800 | 1300/1600 | |||
| 5IK120A-S | 5IK120GU-S | Three-phase 220 | 50/60 | 0.74 | 2900 | 800 | 1300/1600 | |||
| 5IK140A-A | 5IK140GN-A | 140 | Simplex 110 | 50/60 | 2.35 | 900 | 1000 | 1350/1650 | 30/250V | |
| 5IK140A-C | 5IK140GN-C | Simplex 220 | 50/60 | 2.35 | 900 | 1000 | 1350/1650 | 7.0/450V | ||
| 5IK140A-S3 | 5IK140GU-S3 | Three-phase 380 | 50/60 | 0.56 | 3500 | 1000 | 1350/1650 | |||
| 5IK140A-S | 5IK140GU-S | Three-phase 220 | 50/60 | 0.12 | 3500 | 1000 | 1350/1650 | |||
| 6IK160A-A | 6IK160GN-A | 160 | Simplex 110 | 50/60 | 2.4 | 950 | 1260 | 1350 | 32/250V | |
| 6IK160A-C | 6IK160GN-C | Simplex 220 | 50/60 | 1.25 | 950 | 1260 | 1350 | 8.0/450V | ||
|
6IK160A-S3 |
6IK160GU-S3 | Three-phase 380 | 50/60 | 0.55 | 3700 | 1260 | 1400 | |||
| 6IK160A-S | 6IK160GU-S | Three-phase 220 | 50/60 | 0.95 | 3700 | 1260 | 1400 |
|
||
| 6IK180A-A | 6IK180GN-A | 180 | Simplex 110 | 50/60 | 3 | 1020 | 1300 | 1350/1650 | 36/250V | |
| 6IK180A-C | 6IK180GN-C | Simplex 220 | 50/60 | 1.3 | 1020 | 1300 | 1350/1650 | 9.0/450V | ||
| 6IK180A-S3 | 6IK180GU-S3 | Three-phase 380 | 50/60 | 0.83 | 4000 | 1300 | 1350/1650 | |||
| 6IK180A-S | 6IK180GU-S | Three-phase 220 | 50/60 | 1.44 | 4000 | 1300 | 1350/1650 | |||
| 6IK200A-A | 6IK200GN-A | 200 | Simplex 110 | 50/60 | 3.2 | 1100 | 1470 | 1350/1650 | 40/250V | |
| 6IK200A-C | 6IK200GN-C | Simplex 220 | 50/60 | 1.6 | 1100 | 1470 | 1350/1650 | 10/450V | ||
| 6IK200A-S3 | 6IK200GU-S3 | Three-phase 380 | 50/60 | 0.75 | 4200 | 1460 | 1350/1650 | |||
| 6IK200A-S | 6IK200GU-S | Three-phase 220 | 50/60 | 1.45 | 4200 | 1460 | 1350/1650 | |||
| 6IK250A-A | 6IK250GN-A | 250 | Simplex 110 | 50/60 | 3.5 | 1200 | 1790 | 1300/1600 | 24/250V | |
| 6IK250A-C | 6IK250GN-C | Simplex 220 | 50/60 | 1.8 | 1200 | 1790 | 1300/1600 | 6.0/450V | ||
| 6IK250A-S3 | 6IK250GU-S3 | Three-phase 380 | 50/60 | 1.05 | 4500 | 1800 | 1300/1600 | |||
| 6IK250A-S | 6IK250GU-S | Three-phase 220 | 50/60 | 1.6 | 4500 | 1800 | 1300/1600 | |||
